35 square sliding contact line (BHFS-5-35D/165)

Category:

Sliding Contact Line

Keywords:

Online consulting

Detail

Product Parameters

Category	Parameters
Rated Current	165A
Rated Voltage	380V/690V
Single Specification	30168569mm
Single Weight	11.9kg
Equivalent to 35 square copper cable

35 Square Sliding Contact Line BHFS-5-35D/165

Technical Parameter Table

Serial Number	Category	Parameters
1	Rated Current	165A
2	Rated Voltage	380V
3	Power Supply Method	Three-phase five-wire
4	Single Specification	3016x85x69mm
5	Single Weight	11.9kg
6	Insulation Resistance	≥0.5MQ
7	Insulation Dielectric Strength	50Hz AC 3750V, 1min without breakdown flashing phenomenon
8	Enclosure Protection Level	IP23
9	Electrothermal Stability	20 times \| Rated 1s
10	Rated short-time withstand current and Rated peak withstand current	4.5KA/6.75KA
11	Environmental Indicators	1. High-temperature test: Ordinary type +55°C 2. Low-temperature test -30°C 3. Damp heat test Relative humidity 95%, +25°C 4. Atmospheric pressure 86-106KPa
12	Flame Retardancy	V0 grade
13	Power Transmission Sliding Contact Line Parameters	Complies with GB3048 (electrical performance of wire and cable conductors) standard requirements Resistivity ≤0.0289mm²/m (+20°C)
14	Collector	Traction force: F<80N; Speed: V≤100m/min
15	Brush Coefficient	Operation 2000KM, wear <0.8mm Effective brush wear: 9-11mm; Effective working pressure: 3.72-5.36N/cm²

Product Details

As a new type of power transmission device for construction hoisting machines, the sliding contact line uses high-quality insulating material for the shell and embeds 5 power transmission aluminum conductors as the power busbars. It is configured with a flexible collector, and its structure is simple, compact, safe, reliable, and energy-saving. Each sliding contact line is 3016mm long (equivalent to the height of 2 standard sections), and it is directly installed on the standard section using iron fittings. Its invention effectively solves the problems that have plagued customers for many years, such as short service life of cables, easy theft, and disconnection due to strong winds, which affect safe construction.

Product Advantages:
(1) Does not occupy elevator load capacity: The sliding contact line is fixed on the standard section, and the weight is distributed among the standard sections, which does not increase the load of the cage.
(2) Not affected by weather: The sliding contact line is fixed on the standard section, no matter how strong the wind is, the sliding contact line remains stationary, and does not affect the operation of the construction hoist.
(3) Not easily lost: The sliding contact line has low added value after disassembly and is not profitable.
(4) Easy to replace damaged parts: The sliding contact line is an assembly. If any part is damaged, only the damaged part needs to be replaced, and the entire line does not need to be replaced. The replacement of parts is relatively simple, and only the connector needs to be disassembled on site.
(5) Will not top out: When the construction hoist is equipped with a sliding contact line, if the limit switch fails, and the collector rushes out of the top end of the sliding contact line, the system will automatically cut off the power, and the hoist will stop running, preventing topping out.
(6) Can be added according to the project progress: Each sliding contact line is 3016mm long, equivalent to the height of two standard sections. The connection method is plug-in, and it can be added as the standard section is increased.
(7) Reusable: The sliding contact line can be used for 4 to 6 years normally. After the project is completed, it can be reused.

Cases

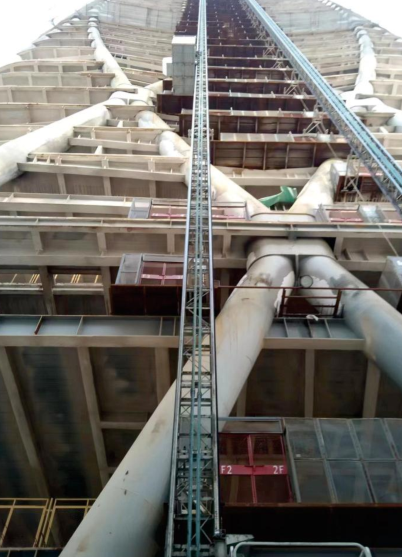

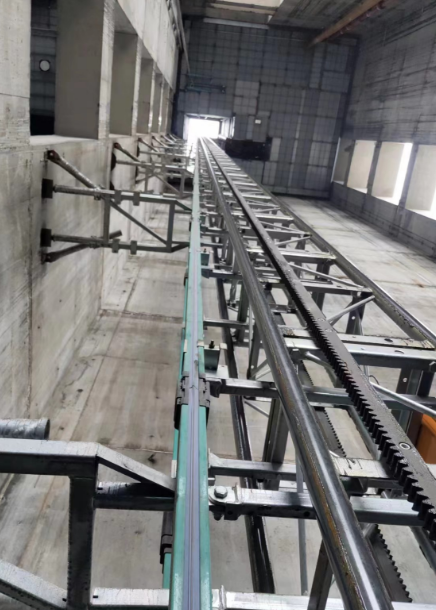

Case 1: Ningbo Center Building Project
